On site installation and commissioning of HB LiFePO4 lithium iron phosphate battery pack

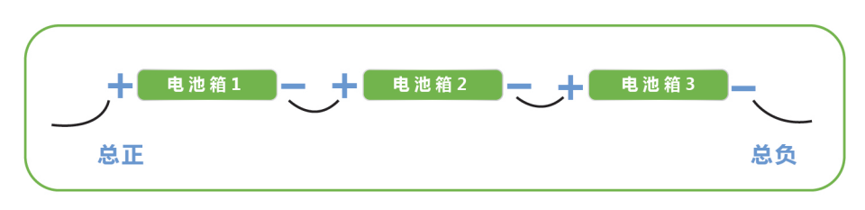

      On site installationTaking the 220V100Ah battery pack as an example, the external wiring harness of the battery pack includes power wiring harness and control wiring harness.1. Power harnessUsing a two core high current connector, complete the series connection of the power supply between three battery boxes. The final positive pole of Box 1 battery is the total positive pole of the battery pack, while the negative pole output of Box 3 battery is the total negative pole of the battery pack.

      2. Control wiring harnessUsing multi-core connectors, the connection of the three boxes is completed through parallel connection.On site debuggingThe battery pack has undergone complete system debugging before leaving the factory, and maintenance personnel can view the battery pack information through the display screen.
