Working principle of HB LiFePO4 lithium iron phosphate battery

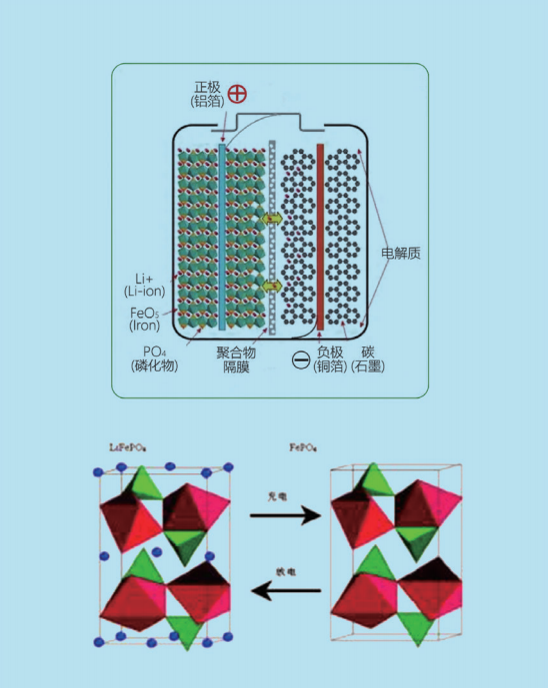

The internal structure of lithium iron phosphate battery is shown in the above figure. On the left is LiFePO4 with olivine structure as the positive electrode material of the battery, connected by aluminum foil to the positive electrode of the battery. In the middle is a polymer separator, which separates the positive and negative electrodes. Lithium ion Li+can pass through, while electron e - cannot; On the right is the negative electrode material of the battery composed of carbon (graphite), which is connected to the negative electrode of the battery by copper foil. The structure between the upper and lower ends of the battery is olivine, which is more stable and reliable compared to spinel and layered structures.Yantai Haibo Electrical Equipment Co., Ltd. is mainly engaged in the research and development, production, sales, and technical services of lithium iron phosphate battery packs, complete sets of AC and DC power supplies, building automation equipment, and computer monitoring systems. It is committed to providing overall technical and product solutions for new energy applications, energy conservation and emission reduction, and smart grids. Our main products are aimed at industries such as high-rise buildings, power substations, power plants, petrochemicals, metallurgy, and rail transit. Contact number: 0535-8209058
