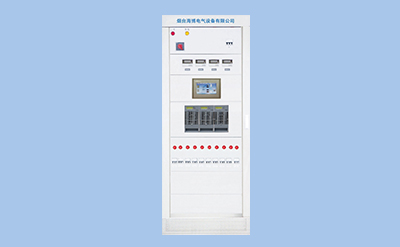

System composition of HB-GZDW integrated cabinet systemOverall designIntegrating communication, charging, feeding, and battery packRated current110V: 10A, 20A, 30A; 220V: 10A, 20A, 30AMaximum battery capacityLead-acid battery110V: 100Ah; 220V: 50AhLithium iron phosphate110V: 120Ah; 220V: 60AhCommunication inputTwo three-phase four wire automatic switching for mutual backupLightning protection unitEquipped with lightning protection and overvoltage protection functionsFeedout loopCan be configured with 20 10A-50A circuit breakersmonitoring systemAutomatically manage the charging and discharging of batteries, with a large Chinese character LCD display and the ability to achieve; Remote control, telemetry, remote signaling, remote adjustment; functionBattery inspectionMonitor the operating data of each battery sectionPressure reducing device5-level or 7-level voltage regulation device (optional)Feed detectionMonitor the tripping signals of each feedback circuit and the signals of battery fusesInsulation monitoringMonitor the insulation status of the busbar and various output circuitsCabinet size2260mm (H) * 800mm (W) * 600mm (D) (customizable according to user requirements)
[Product Recommendation]
Yantai Haibo Electrical Equipment Co., Ltd. is mainly engaged in the research and development, production, sales, and technical services of lithium iron phosphate battery packs, complete sets of AC and DC power supplies, building automation equipment, and computer monitoring systems. It is committed to providing overall technical and product solutions for new energy applications, energy conservation and emission reduction, and smart grids. Our main products are aimed at industries such as high-rise buildings, power substations, power plants, petrochemicals, metallurgy, and rail transit. Contact number: 0535-8209058
