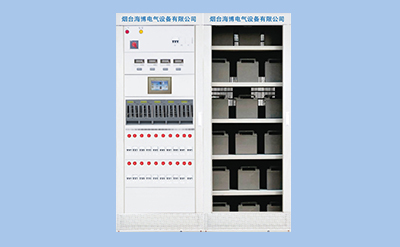

Composition of HB-GZDW charging and feeding integrated system1、 Charging and feeding cabinetRated current110V: 20A-200A220V: 10A-100ACommunication inputTwo three-phase four wire automatic switching for mutual backupLightning protection unitEquipped with lightning protection and overvoltage protection functionsFeedout loopCan be configured with 30 10A-50A circuit breakersmonitoring systemAutomatically manage the charging and discharging of batteries, with a large Chinese character LCD display and the ability to achieve; Remote control, telemetry, remote signaling, remote adjustment; functionBattery inspectionMonitor the operating data of each battery sectionPressure reducing device5-level or 7-level voltage regulation device (optional)Feed detectionMonitor the tripping signals of each feedback circuit and the signals of battery fusesInsulation monitoringMonitor the insulation status of the busbar and various output circuitsCabinet size2260mm (H) * 800mm (W) * 600mm (D) (customizable according to user requirements)2、 Battery cabinetMaximum capacityLead acid battery: 200AhLithium iron phosphate: 300AhCabinet size2260mm (H) * 800mm (W) * 600mm (D) (customizable according to user requirements)
