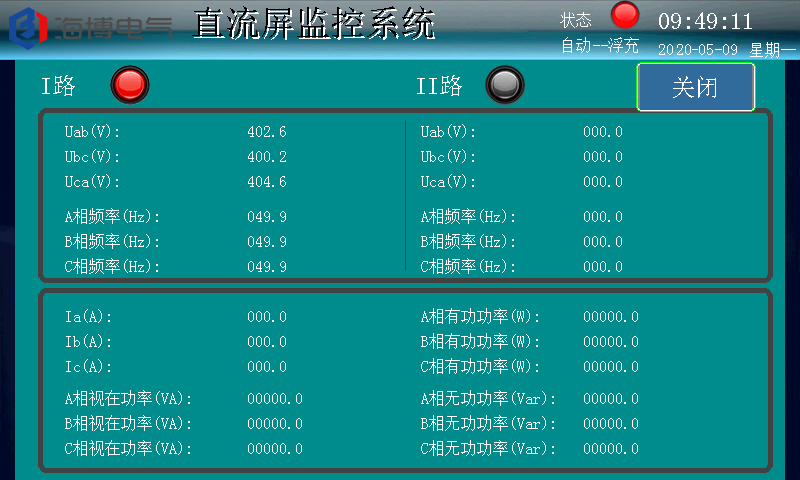

Function: Query information such as AC voltage, current, power, frequency, etc. The red light indicates the current AC circuit being used.

2. Click on the main interface of the DC screen power supply monitoring system; Charging module; Icon, enter the charging module information interfaceFunction: Query the output voltage, output current, module current limit percentage, working status, and other information of each charging module.3. Click on the main interface of the DC screen power supply monitoring system; Battery; Icon, enter the individual battery information interfaceFunction: Query information such as voltage, internal resistance, battery current, and ambient temperature of each individual battery.4. Click on the main interface of the DC screen power supply monitoring system; DC/DC” The DC converter icon enters the DC/DC converter information interfaceFunction: Query the output voltage, output current, working status, and other information of each DC/DC converter.5. Click on the main interface of the DC screen power supply monitoring system; DC/AC; The inverter icon enters the DC/AC inverter information interfaceFunction: Query the output voltage, output current, working status, and other data of each DC/AC inverter.6. Click on the main interface of the DC screen power supply monitoring system; Branch switch; Icon enters the branch switch status information interfaceFunction: Query the status information of each branch switch.7. Click on the main interface of the DC screen power supply monitoring system; Grounding resistance; Icon enters the branch insulation information interfaceFunction: Query insulation information of each branch.8. Click on the main interface of the DC screen power supply monitoring system; Fault Information; Button to enter the fault information query interfaceFunction: Query current and historical fault information.9. Click on the main interface of the DC screen power supply monitoring system; DC information; Button to enter the DC information interfaceFunction: Query charging module information, bus voltage, bus current, and environmental temperature information.10. Click on the main interface of the DC screen power supply monitoring system; System Control; Button, prompt for password input interfaceFunction: Enter the system control password.11. After entering the correct password, enter the system control interfaceFunction: Control the charging module switch or balance float charging conversion.12. Click on the main interface of the DC screen power supply monitoring system; Parameter settings; Button, prompt for password input, enter different levels of passwords to enter the corresponding level of settings interfaceEnter the parameter settings password.13. After entering the maintenance level setting password, enter the maintenance level parameter setting interfaceFunction: Set parameters for the highest level of system permissions.14. After entering the normal user level password, enter the normal user level parameter setting interfaceFunction: Set the system's regular alarm values and other routine items.15. Click on the main interface of the DC screen power supply monitoring system; Help; Button to enter the help information interfaceFunction: Display product version information and help information.HB-GZDW Intelligent High Frequency Switching DC Power Supply Main Monitoring Software V3.2
