The following are the application scenarios and product features of HB-S2000 series 6-10kVA UPS from Haibo Electric1、 HB-S2000 series 6-10kVA UPS application fieldNetwork computer rooms and small intelligent equipment (such as measuring devices, industrial automation equipment, etc.), precision instruments, etc. for systems such as finance, communication, healthcare, insurance, transportation, taxation, military, securities, energy, education, government, enterprises, etc.

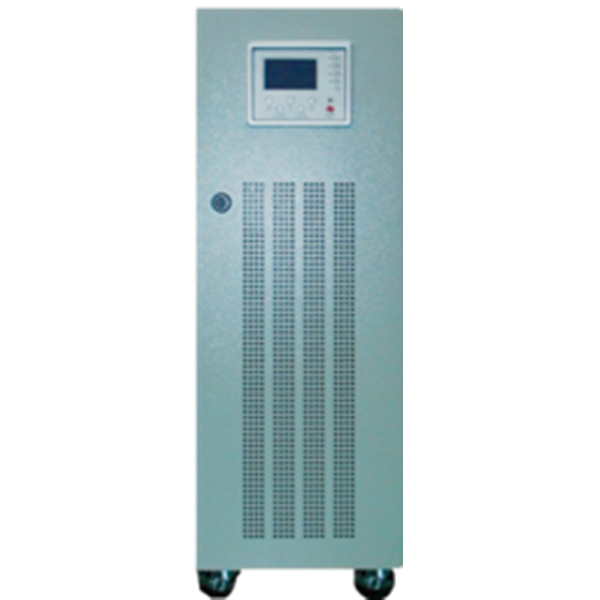

       [Click on the image to learn about HB-S2000 series 6-10KVS UPS]

       The HB-S2000 series single input single output UPS is a power frequency pure online intelligent UPS developed based on new DSP digital control technology, targeting the high reliability requirements of China's power grid environment, network systems, and intelligent devices for power supply. The system adopts an online dual transformation topology design, completely eliminating various interferences from the power grid; The DC/AC converter adopts SPWM pulse width modulation technology, IGBT power module, and output isolation transformer, making the UPS output a pure sine wave power supply with stable voltage and frequency, noise filtering, and low distortion.

        2、HB-S2000 series 6-10kVA UPSPerformance Characteristics

       1. Pure sine wave technologyThis product adopts advanced SPWM modulation technology, and the output is filtered by LC to form a stable and frequency stable standard sine wave voltage for the load to use, reducing noise interference on the load.

        2、HB-S2000 series 6-10kVA UPSFriendly human-machine dialogue interface

        (1) The system adopts Chinese/English LCD display and LED status indication;(2) A clear control panel displays the operation status, load status, battery power supply status, etc. of the UPS on the panel, allowing users to keep track of the UPS power supply situation and changes in the application environment at any time, enabling zero distance communication between humans and machines.

        3、HB-S2000 series 6-10kVA UPSSelf diagnostic function upon startup

        When powered on and turned on, UPS checks the critical working circuits (rectifiers, chargers, inverters, etc.) to promptly detect problems and avoid any losses.

        4、HB-S2000 series 6-10kVA UPShigh reliability

        1) Advanced DSP full digital control technology, more rapid and accurate data processing and control, online dual conversion design, during the normal operation of the system, the system recharges the battery through the charger to ensure sufficient battery energy, the use of advanced Hall devices to ensure that the product detection system is more perfect, thus ensuring the high reliability and progressiveness of the product.

(2) Adopting advanced constant current/constant voltage automatic conversion and even/float charging automatic conversion charging technology, charging according to the battery's characteristic curve greatly extends the battery's service life;

(3) Equipped with battery cold start function, it can start with full load in the absence of mains power, meeting the emergency needs of users;

(4) The comprehensive protection circuits for overvoltage, overcurrent, and overheating have improved the stability of system operation.

        5、HB-S2000 series 6-10kVA UPSExcellent electrical performance

(1) The ultra wide input voltage range and frequency range greatly reduce the frequency of UPS battery usage, effectively prolonging the battery's service life;

(2) The system is used for 220/230/240V, 50/60Hz power grid systems to meet the needs of different customers;

(3) The system output power factor is 0.9, with strong load capacity;

(4) When a standalone or parallel system operates in economic operation mode (ECO mode), the system operates with extremely high efficiency, energy conservation, and environmental protection;

(5) The output isolation transformer prevents the direct current component of the output voltage from causing harm to the load; Reduce the impact of load harmonic current on the inverter; Simultaneously isolate the impact of the power grid on the load.

6. Quick synchronization conversionThe system automatically tracks the phase of the mains power, ensuring that the inverter output voltage is completely in phase with the mains voltage, effectively achieving zero conversion time for UPS and reducing the impulse current generated during switching, ensuring no interference or damage to electrical equipment.

7. Intelligent monitoring

(1) UPS and PC can communicate through RS232 communication interface, making it easy for users to understand UPS's working status, historical records, etc;

(2) Remote monitoring of UPS can be achieved through SNMP network communication cards, RS485 interfaces, etc., making it easy for customers to understand the real-time operation status of UPS at any time and anywhere.

8. Options

(1) Upper inlet line option

(2) Bypass current sharing inductance

(3) SNMP card

(4) Dry node card

(5) Battery temperature transmitter

(6) Battery ground fault tester

(7) Parallel components

(8) Input isolation transformer9. HB-S2000 series 6-10kVA UPS automatic frequency selectionWhen the UPS is connected to the mains frequency of 50Hz or 60Hz, the UPS will automatically detect the mains frequency. After the mains power is cut off, the UPS output voltage frequency will remain the same as before the mains power outage (50Hz or 60Hz).

10. Intelligent battery management for HB-S2000 series 6-10kVA UPS

(1) Setting up battery overcharge protection, over discharge protection, reasonable charging and discharging process management, timed automatic battery discharge management, etc., enables UPS batteries to have a higher lifespan and reliability;

(2) Through the LCD display interface, customers can intuitively monitor the charging and discharging status of the battery in real-time;

(3) If the battery is discharged due to abnormal mains power and shuts down until the cut-off time, the UPS can automatically start up and complete the self start function when the mains power returns to normal, which can achieve applications in unmanned environments.

11. HB-S2000 series 6-10kVA UPS easy to maintain

(1) Rich alarm and fault record information provides strong support for fault diagnosis and analysis;

(2) Modular design within the system, easy maintenance and operation;

(3) Replacing the battery does not require interrupting the operation of the UPS.

12. N+1 redundant parallel function

(1) The N+1 redundant parallel function can be conveniently implemented, and 8 UPS can be parallel, greatly improving the reliability of the system;

(2) Parallel operation is simple and convenient, and the system can be expanded according to the development of the business, meeting the requirements of&quo; Developing and building at the same time; Demand;

(3) Advanced digital parallel current sharing control technology, safe and reliable.
