Input method: three-phase+N-wire+ground wire

Rated AC input: 380/400/415VACVoltage range: -40%- 20% can be set

Rated frequency: 50/60Hz

Frequency range: 50/60Hz10%, 2.5%, 5%, 10%, 20% can be set)

Output method: three-phase+N-wire+ground wire

Rated AC input: 208/220/230/240VAC

Voltage normal state: consistent with mains power

Voltage emergency state: 380/400/415VAC (adjustable within 5%)

Frequency normal state: consistent with mains power

Frequency emergency state: 50/60Hz 0.05%

Switching time:<5ms

4. ChargerOutput voltage: 405VDC (default, can be automatically adjusted according to battery configuration and status)

Charging voltage and current: can be adjusted according to the on-site battery configuration

5. InverterVoltage stabilization accuracy: 1% (100% balanced negative cutoff), 2% (100% unbalanced negative cutoff)

Voltage dynamic transient: 5% (0-100% load variation)

Total harmonic voltage distortion:<1% (100% linear load)

Voltage dynamic response time:<5m

sInverter overload capacity: 125% for 10 minutes, 150% for 1 minute

Frequency accuracy: 0.05%

Waveform: Pure sine wave

      Optional SNMP card: supports remote monitoring and management through a network browser managed by SNMP

Note: Special requirements can be customized, and product parameters are subject to change without prior notice

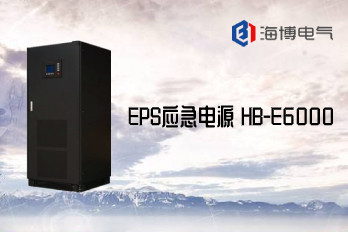

The technical specifications of HB-E6000 series 100-400 KW EPS emergency power supply are as follows:

       Input method: three-phase+N-wire+ground wire

        Rated AC input: 380/400/415VAC

        Voltage range: -40% -20% can be set

        Rated frequency: 50/60Hz

        Frequency range: 50/60Hz (10%, 2.5%, 5%, 10%, 20% can be set)

Output method: three-phase+N-wire+ground wire

Voltage normal state: consistent with mains power

Voltage emergency state: 380/400/415VAC (adjustable within 5%)

Frequency normal state: consistent with mains power

Frequency emergency state: 50/60Hz 0.05%

Switching time:<5ms

4. Charger

Output voltage: 432VDC (default, can be automatically adjusted according to battery configuration and status)

Charging voltage and current:

can be adjusted according to the on-site battery configuration

5. InverterVoltage stabilization accuracy: 1% (100% balanced negative cutoff), 2% (100% unbalanced negative cutoff)

Voltage dynamic transient: 5% (0-100% load variation)

Total harmonic voltage distortion:<1% (100% linear load),<3% (100% nonlinear load)

Voltage dynamic response time:<5m

sInverter overload capacity: 125% for 10 minutes, 150% for 1 minute

Frequency accuracy: 0.05%

Waveform: Pure sine wave
