Technical specifications and features of HB-S3000 series 10-80kVA UPS

Yantai Haibo Electrical Equipment Co., Ltd. focuses on customized research and development, production, sales, and technical services for large capacity lithium-ion battery packs, intelligent AC/DC power supply sets, building automation equipment, and computer monitoring systems. We are committed to providing overall technical and product solutions for new energy applications, green intelligent buildings, and energy conservation and emission reduction. Our main products are aimed at industries such as high-rise buildings, power substations, power plants, petrochemicals, metallurgy, and rail transit. Contact number: 0535-8209058The following are the technical specifications for HB-S3000 series 10-80kVA UPS

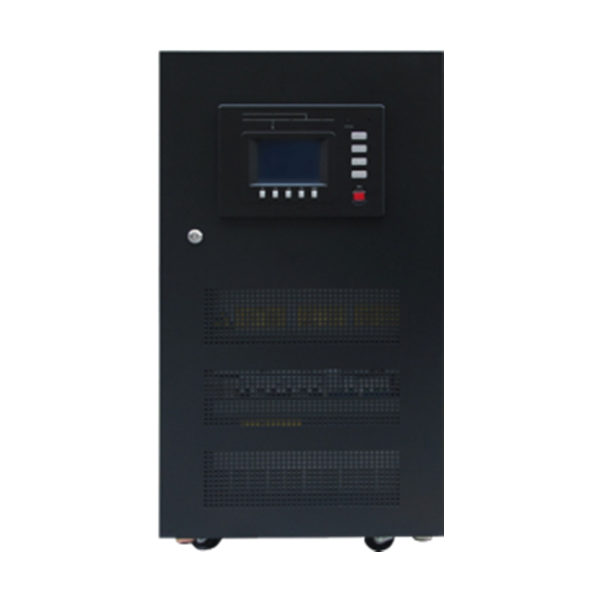

【Click on the image to learn about the HB-S3000 series UPS】

1、HB-S3000UPS power supplycapacity

Rated capacity：10KVA、15KVA、20KVA、30KVA、40KVA、60KVA、80KVA

Active power：9kW、13.5kW、18kW、27kW、36kW、54kW、72kW

2、HB-S3000UPSPower supply main circuit

Input method:

three-phase+ground wireRated AC

input: 380/400/415VAC

Voltage range: 285VAC-498VAC

Rated frequency: 50/60Hz

Frequency range: 45-66Hz

Input power slow start delay:

5-600s can be set

Rectifier soft start: 6-100s can be set

3、HB-S3000UPSsourceBypass output

Rated AC input: 220/230/240VAC (single-phase+neutral)

Voltage range: -40% -20% can be set

Frequency range: 50/60Hz 10% (2.5%, 5%, 10%, 20% can be set)

Rated AC output: 220/230/240VAC

Stable voltage accuracy: 1%

Power factor: 0.9Voltage dynamic transient: 5% (0-100% load variation)

Yantai Haibo Electrical Equipment Co., LtdFocusing on customized research and development, production, sales, and technical services for high-capacity lithium-ion battery packs, intelligent AC/DC power supply sets, building automation equipment, and computer monitoring systems, we are committed to providing overall technical and product solutions for new energy applications, green intelligent buildings, and energy conservation and emission reduction. Our main products are aimed at industries such as high-rise buildings, power substations, power plants, petrochemicals, metallurgy, and rail transit. Contact number: 0535-8209058

Total harmonic voltage distortion:<1% (100% linear load),<4% (100% nonlinear load)

Voltage dynamic response time: ＜ 20ms

Frequency synchronization tracking range: 2Hz (± 0.5-3Hz can be set)

Inverter overload capacity: 110% 1 hour, 125% 10 minutes, 150% 1 minute

Frequency accuracy: 0.5%

Waveform: Pure sine wave4、 Display methodLCD+LED

5、HB-S3000UPSsourceefficiency

Normal mode：92%

ECO mode：98%

6、HB-S3000UPSsourceUsage environment

Temperature：0-40℃

Humidity：0-95％No condensation
