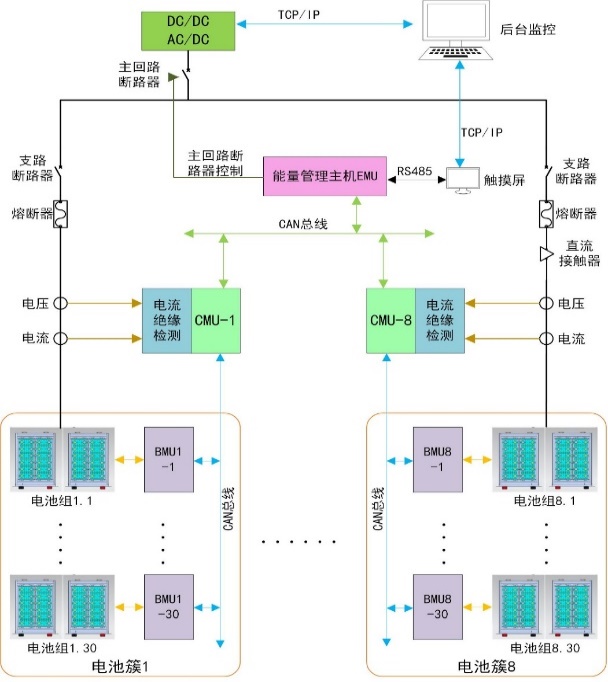

Architecture of Haibo Electric Battery Management System (BMS):

       The battery management system consists of a data acquisition unit (BMU), a main control unit (CMU), a system management unit (EMU), and an intelligent human-machine interaction terminal (ICU). It integrates advanced technologies such as high-precision core algorithms, active/passive balancing, and active safety strategies to achieve intelligent control of the battery at multiple levels from individual to system level.

       Advantages and characteristics of Haibo Electric Battery Management System (BMS):

1. Hierarchical control

(1) The multi-level architecture realizes the management of battery cells, modules, battery clusters, and systems, which can be smoothly expanded.

(2) Hierarchical and regional management to improve system reliability and stability.

(3) Realize comprehensive control from data collection, data processing, status detection, health assessment, fault warning, maintenance decision-making to human-computer interaction.

2. High precision core algorithmReal time calculation of remaining battery capacity and assessment of battery health status, complete learning of total charging and discharging capacity in one go, with an accuracy of capacity estimation better than 3%.

3. Active balancing/passive balancingThe comprehensive application of active balancing technology and passive balancing technology can simultaneously achieve bidirectional balancing management of individual batteries within the battery pack, effectively improving battery consistency and extending the service life of the battery pack.

4. Comprehensive protection functionsIncluding charging protection, discharge protection, overcurrent protection, thermal protection, etc.

5. Event prediction and processing functionIncluding battery failure judgment and handling, battery failure warning and handling, insulation detection and insulation reduction alarm, high voltage warning and handling, etc.Yantai Haibo Electrical Equipment Co., Ltd. focuses on customized research and development, production, sales, and technical services for large capacity lithium-ion battery packs, intelligent AC/DC power supply sets, building automation equipment, and computer monitoring systems.
