1、 Product application areas

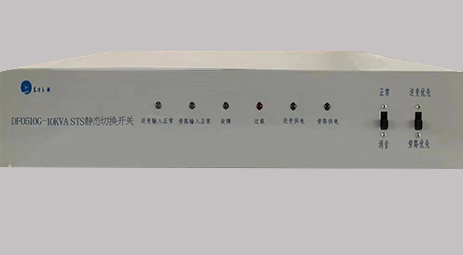

DF0510G-10kVA STS Static Transfer Switch can achieve different input ACUninterruptible switching between power sources to provide dual bus power supply for single power loads, such as:

1. Redundancy of inverter output and bypass

2. N+1 redundancy of non parallel UPS (inverter) systems

3. N+1 redundancy of UPS (inverter) systems with different capacities

4. N+1 redundancy of UPS (inverter) systems of different models

DF0510G-10kVA STS static switching switch is designed as a universal module that can ensure switching time even during passive switching, and can be used in conjunction with UPS products from any manufacturer. It has the characteristics of convenient and concise use, and practicality is fully considered in the design, greatly reducing costs

     2、 Main features

1. Using instantaneous voltage detection to quickly detect input voltage faults and ensure switching time.

2. The cold extraction method is natural cooling, which improves system reliability and reduces noise.

3. Complete fault detection and protection alarm functions.

4. Equipped with remote signaling and control functions.

      3、 Main technical indicators of the product

1. AC input voltage: 176-264V

2. Rated output capacity: 10kVA Rated current: 50A

3. Working mode: 1 # priority 2 # priority

4. Switching time: ＜ 4ms

5. State output (passive node): AC fault, thyristor fault, working indication.

6. Insulation resistance: greater than 10M

7. Insulation strength: Input to shell and output to shell withstand AC 1500V

8. External dimensions: height (H) × Width × Depth (D)=66 × four hundred and eighty-two × 320mm

9. Weight: less than 4kg

10. Heat dissipation method: natural cooling.

11. Noise: ≤ 35dB (A)
