Shandong Haitian Chemical Project Selected Haibo Intelligent Integrated Power Supply System

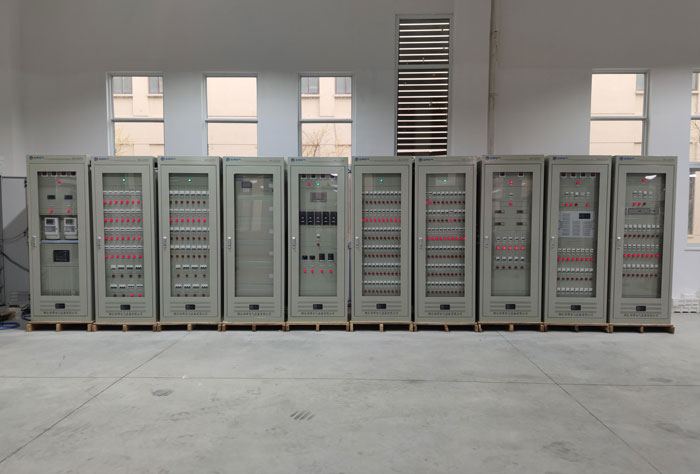

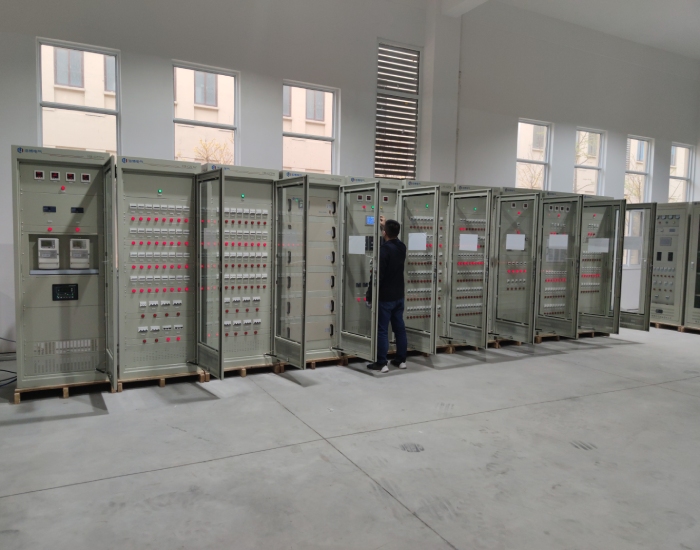

     Shandong Haitian Chemical Project 110kV Substation Selected Haibo Electric HB-GZDW Intelligent Integrated Power Supply System!

   The intelligent integrated power supply system provides safe and reliable working power for the entire station's AC and DC equipment. The entire system includes AC power supply system (AC220V), DC power supply system (DC220V), inverter power supply system (AC220V), communication power supply system (DC48V), and accident lighting system. As the core power supply part of our company, the operation safety of the 110kV substation is directly related to the production safety of Haitian Company. Therefore, the 110kV station measurement and control power supply must ensure stability and reliability.

       The intelligent integrated power system mainly consists of ATS, charging unit, inverter power supply, communication power supply, battery pack, and various monitoring and management modules. The communication power supply does not have a separate battery and charging device, but is directly connected to the DC bus using a DC/DC power module. The inverter power supply is directly hung on the DC bus to supply power to important loads (such as computer monitoring equipment, accident lighting, etc.).The intelligent integrated power supply system adopts a layered distributed architecture, and each functional measurement and control module adopts an integrated design and configuration. The operating conditions and information data of each functional measurement and control module should be modeled using the DL/T860 (IEC61850) standard and connected to the information integration platform.Corresponding products of intelligent integrated power supply system【Click on the image to view details】
